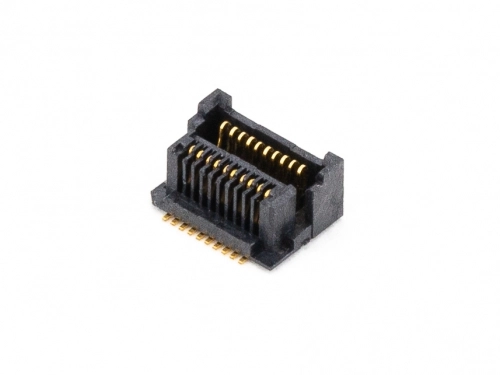

50Gbps Pam4High Speed Self Mating Mezzanine ConnectorPin Spacing: 0.5mmStack Height: 4mmOrientation: Vertical HermaphroditicCompliant: PAM4

PwrFULL® can handle up to 100A per pin.The high-ventilation structure design maximizes heat dissipation, enabling efficient system cooling.Halogen-free materials to meet environmental requirements.Currently available in vertical receptacles and right-angle plugs. Future development includes right-angle receptacles, suitable for parallel board and backplane applications.10 contact points ensure long-term reliability.Extremely low resistance and low voltage drop.

High Power up to 120A per pin; Low Power up to 30A per pin.            20.85mm board height, ideal for 1U/2U power and distribution systems.            High-airflow design for efficient heat dissipation and cooling.            Halogen-free material for environmental compliance.            Available in right-angle male and female versions.            Power and signal pin layout customizable per customer requirements.            Operating temperature: -40°C to +125°C for harsh environments.

Comply with OCP M-CRPS specificationHigh-Power Capability: Supports up to 4500W (4 layers and 6oz copper for each layer)Multi-Contact Power Design: Enhances conductivity and reduces contact resistanceStable Signal Structure: Recessed terminal design prevents damage during matingEfficient Thermal Performance: Enhanced cooling design for superior heat dissipationHigh Assembly Accuracy: PIP-compatible design ensures precise PCB alignment
