High Power BTB Connectors 65AMP to 150AMP

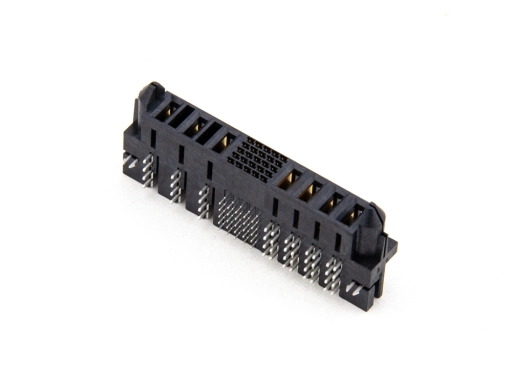

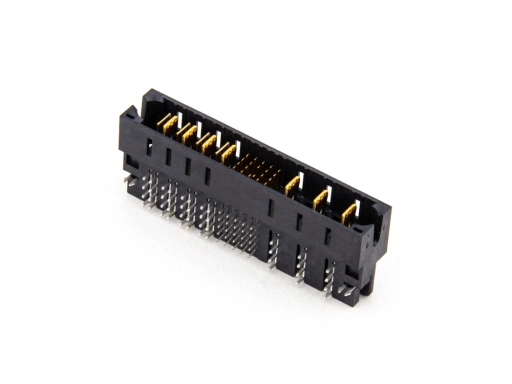

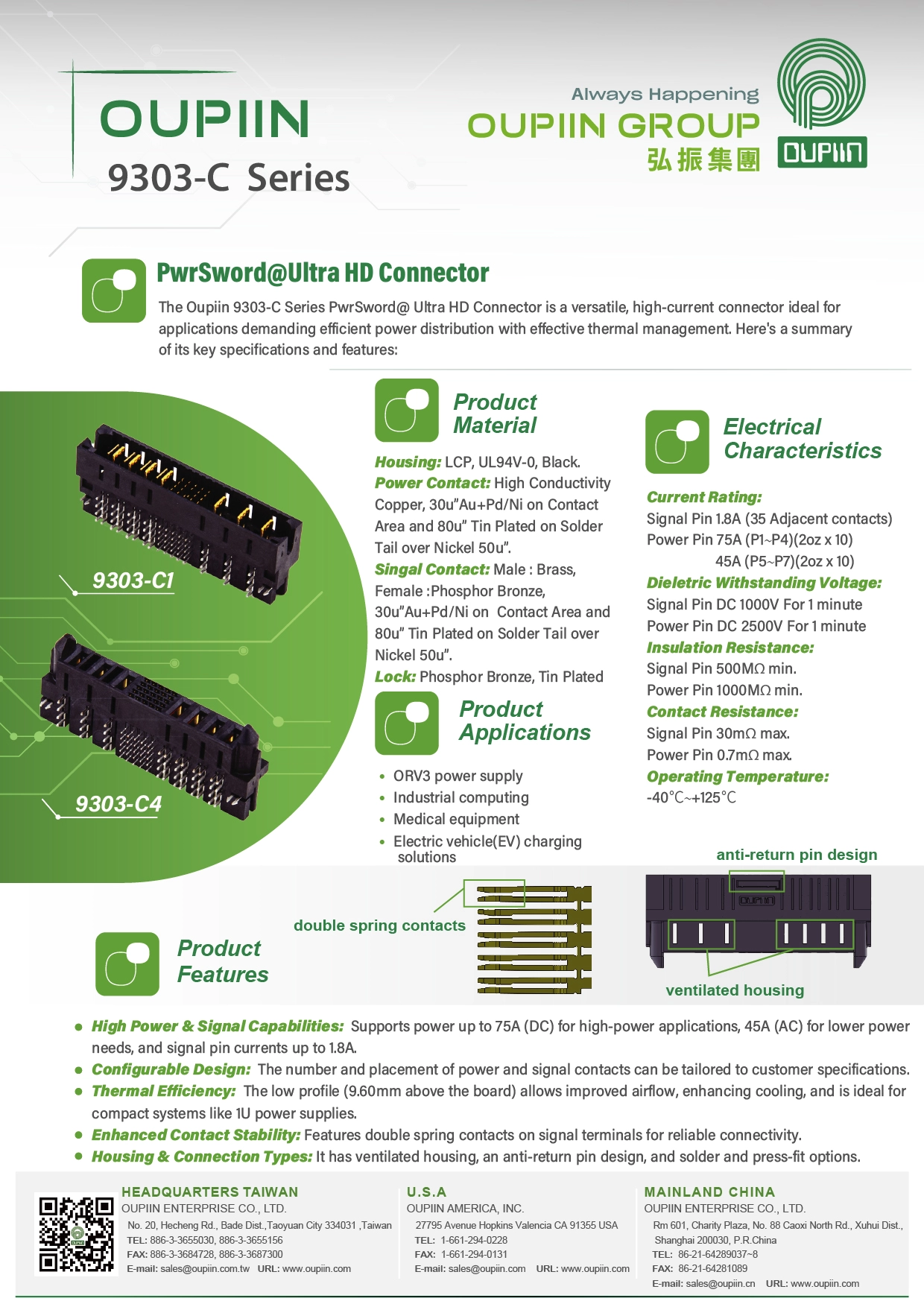

The Oupiin 9303-C Series PwrSword® Ultra HD Connector is a versatile, high-current connector ideal for applications demanding efficient power distribution with effective thermal management.

High Power & Signal Capabilities: Supports power up to 75A (DC) for high-power applications, 45A (AC) for lower power needs, and signal pin currents up to 1.8A.
Configurable Design: The number and placement of power and signal contacts can be tailored to customer specifications.
Thermal Efficiency: The low profile (9.60mm above the board) allows improved airflow, enhancing cooling, and is ideal for compact systems like 1U power supplies.
Enhanced Contact Stability: Features double spring contacts on signal terminals for reliable connectivity.
Housing & Connection Types: It has ventilated housing, an anti-return pin design, and solder and press-fit options.
