High Power BTB Connectors 65AMP to 150AMP

read more
AI Server Power Modular Connectors AI Server Power Solution 9303-D 9311 Flyer

High Power BTB Connectors 65AMP to 150AMP

  • High Power up to 120A per pin; Low Power up to 30A per pin.
  • 20.85mm board height, ideal for 1U/2U power and distribution systems.
  • High-airflow design for efficient heat dissipation and cooling.
  • Halogen-free material for environmental compliance.
  • Available in right-angle male and female versions.
  • Power and signal pin layout customizable per customer requirements.
  • Operating temperature: -40°C to +125°C for harsh environments.

120A/30A PwrSword® Ultra Pro 9303-E Series

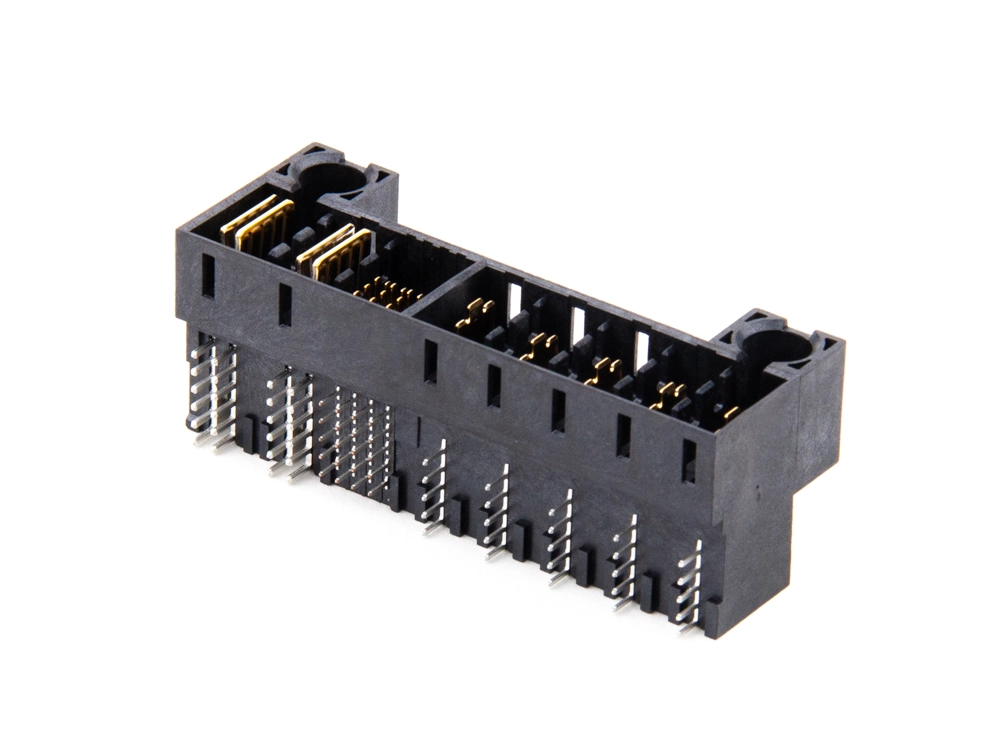

9303-E1P07S20B7SAA01

Part No.

9303-E1P07S20B7SAA01

Desc.

Male Right Angle Solder Type 7 Power 20 Signal

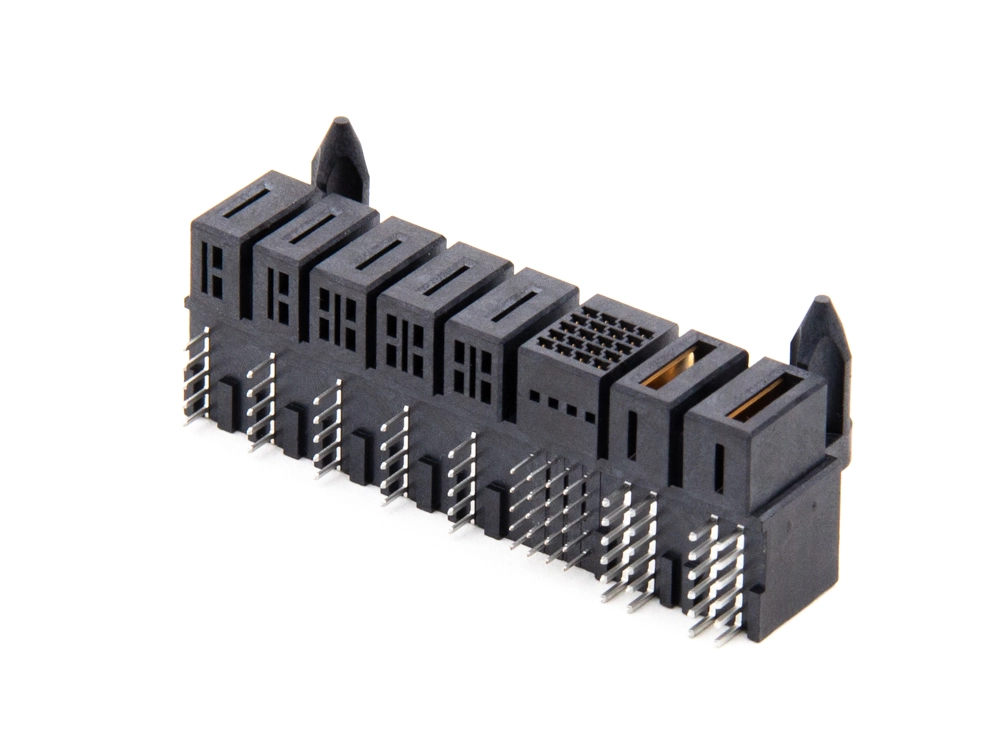

9303-E4P07S20B7SAA01

Part No.

9303-E4P07S20B7SAA01

Desc.

Female Right Angle Solder Type 7 Power 20 Signal
